  • Backhoe

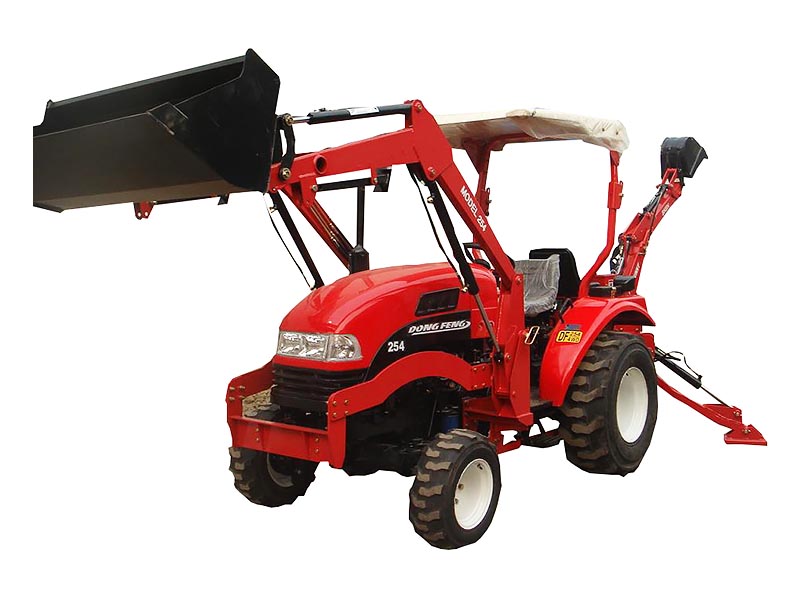

Backhoe

To clean up constructions areas by moving large piles of dirt from one place to another regardless of terrain

We're here to help: Easy ways to get the answers you need.

Send Email Chat Now

Describe ParameterRelated products Inquiry

Describe

Uses:

- To clean up constructions areas by moving large piles of dirt from one place to another regardless of terrain
- To dig the ground
- To smooth out uneven terrain with the use of the digging bucket
- To create trenches
- To carve ditches or dikes
- To remove deep-seated roots of trees

Features:

- Suits all types of tractors with Cat 1 or 2, 3-point linkage kit;
- Joystick style control console;
- Tough and reliable hydraulic arm;
- Individually controlled support legs;
- Boom lockout pins for transport

Parameter

MODEL BK-6N BK-7N BK-215
Digging depth 73.9°±(1877mm) 90.2°±(2291mm) 86.6"(2200mm)
Swing Angle 180° 180° 180°
Loading height 65.0°±(1651mm) 75.5°±(1918mm) 72.8"(1850mm)
REACH-from centerline SWING PIVOT 98.1°±(2492mm) 116.5°±(2959mm) 126"(3200mm)
Transport height 70.7°±(1796mm) 79.8°±(2027mm) 83.8"(2120mm)
Bucket rotation 180° 180° 180º
Stabilizer spread-full up 59.0” (1498mm) 59.0” (1498mm) 46.5"(1180mm)
Shipping weight 396 KGS 425 KGS 450kg
Power required 25-35 HP 35-45 HP 40-60 HP
  20-40HP Series 30-40HP Series DF-404 45-55HP Series 55-65HP Series
