  • 1BQDX Series Disc Harrow

1BQDX Series Disc Harrow

1BQDX Series are used for crushing clods after tillage preparing soil before seeding, loosening the soil, combining the soil and fertilizer, and cleaning away stubble of plants in light soil field. With reasonable structure, strong ability to rake, durabl

We're here to help: Easy ways to get the answers you need.

Send Email Chat Now

Describe ParameterRelated products Inquiry

Describe

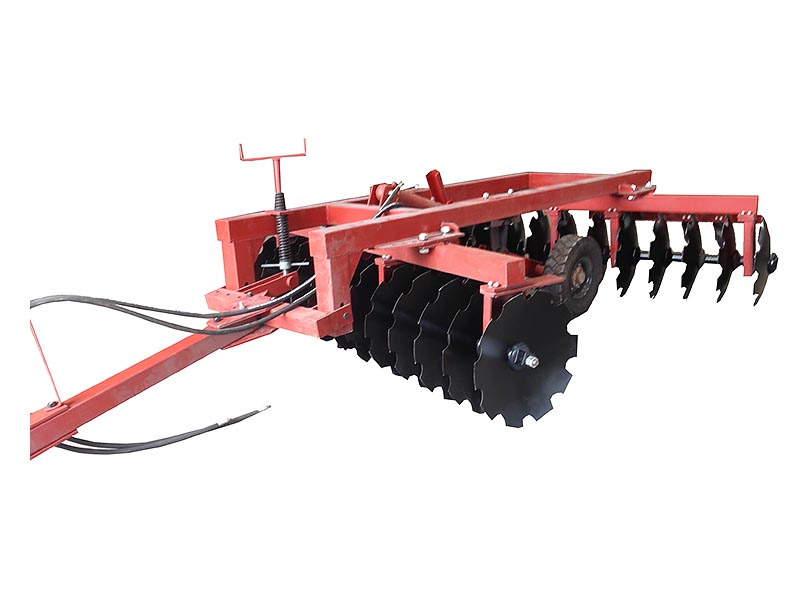

Opposed Light-Duty Disc Harrow

1BQDX Series are used for crushing clods after tillage preparing soil before seeding, loosening the soil, combining the soil and fertilizer, and cleaning away stubble of plants in light soil field. With reasonable structure, strong ability to rake, durable, easy to use and maintain, etc.

Parameter

MODEL 1BQDX-1.25 1BQDX-1.6 1BQDX-2.0 1BQDX-2.3 1BQDX-2.65 1BQDX-3.0
Working width (mm) 1250 1600 2000 2300 2650 3000
Working depth (mm) 50-150
Number of Disc (pc) 16 20 24 28 32 36
Dia. Of Disc (mm) 460
Net weight (kg) 330 390 460 560 600 650
Matched power 35-40HP 40-45HP 50-60HP 60-75HP 75-80HP 85-100HP
Matched model 25-40HP Series 45-50HP Series 55-65HP Series 70-80HP Series 90-100HP Series
