  • 1BZ Series Disc Harrow

1BZ Series Disc Harrow

1BZ Series hydraulic pressure offset heavy duty disc harrow has the high working efficiency, strong capability into the soil, and after plough loosen soil. This series can highly adapt to the sticky heavy soil, uncultivated field and those plots of many w

We're here to help: Easy ways to get the answers you need.

Send Email Chat Now

Describe ParameterRelated products Inquiry

Describe

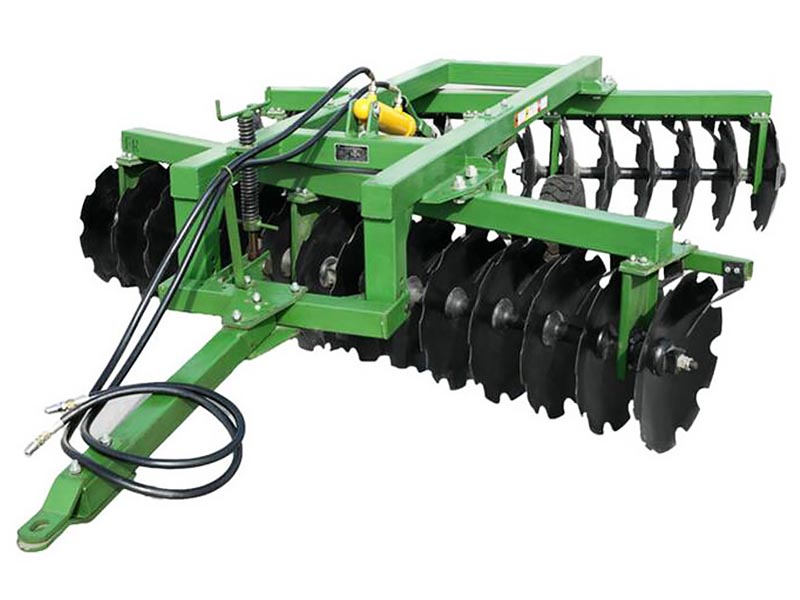

Mounted Heavy Duty Disc Harrow

1BZ Series hydraulic pressure offset heavy duty disc harrow has the high working efficiency, strong capability into the soil, and after plough loosen soil. This series can highly adapt to the sticky heavy soil, uncultivated field and those plots of many weeds. This harrow is made of square tubes welded together which ensures simple structure and good rigidity. The harrow is also equipped with hydraulic lifting rubber wheels for convenient transportation and small turning radius, thus the production efficiency and lifetime of the harrow is dramatically improved.


Parameter

MODEL 1BZ-1.6 1BZ-1.8 1BZ-2.0 1BZ-2.2 1BZ-2.5 1BZ-3.0
Working width (mm) 1600 1800 2000 2200 2500 3000
Working depth (mm) 200
Number of Disc (pc) 14 16 18 20 24 28
Dia. Of Disc (mm) 660
Net weight (kg) 950 1050 1150 1250 1350 1450
Matched power 65-70HP 70-80HP 80HP 80-90HP 80-100HP 90-100HP
