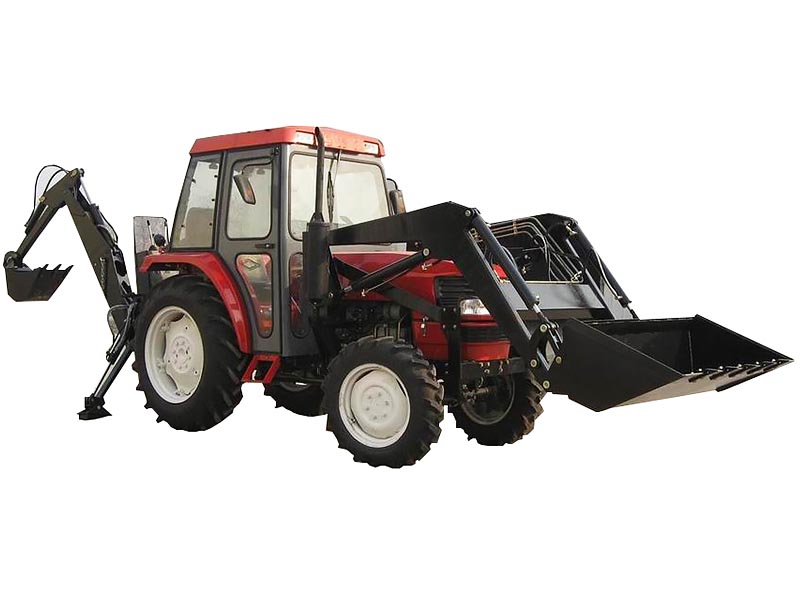

Front End Loader

A self levelling feature enables finer grading to be done and enhances safety by keeping the bucket level when lifting the boom;

We're here to help: Easy ways to get the answers you need.

Send Email Chat Now

Describe

Front end loader 4 in 1 function

Uses:

- Loading
- Grading
- Grabbing
- Transporting
- Clearing debris after storms
- Transferring soil,gravel and other materials
- Forklift attachment for lifting machinery and transporting hay bales

Features:

- 4-in-1 buckets are particularly useful as they have the ability to scoop,blade,level as well as grab;
- A self levelling feature enables finer grading to be done and enhances safety by keeping the bucket level when lifting the boom;
- Quick release design ensures the bucket can be easily removed and various other attachments fitted;
- Italian valve with joystick available;
- These accessories such as Bale gripper,round fork,square fork available

Parameter

MODEL	FEL 250 KS	FEL 300 KS	FEL 350 KS	FEL 404 KS
Dimensions (L × W × H)	2120×1370×1380mm	2120×1520×1380mm	2120×1670×1380mm	2120×1670×1380mm
Structure weight	400kg	440kg	480kg	480kg
Bucket width	1.37 m	1.52 m	1.67 m	1.67 m
Bucket cubage	0.2 m3	0.22 m3	0.24 m3	0.24 m3
Carrying capacity	400kg	440kg	480kg	480kg
Lift height	2.2m	2.2m	2.2m	2.2m
Unloading distance	0.73m	0.73m	0.73m	0.73m
Power required	25 HP	30 HP	35 HP	40 HP
Matched model	25-40HP Series
