Hole Digger

Create fences with ease to keep wanted things in and unwanted things out

We're here to help: Easy ways to get the answers you need.

Send Email Chat Now

Describe ParameterRelated products Inquiry

Describe

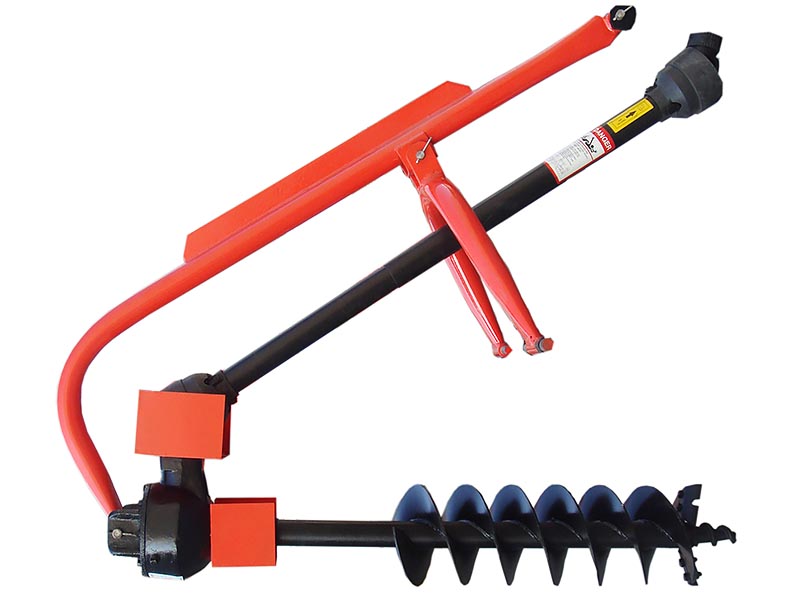

Hole Digger

Uses:

- Create fences with ease to keep wanted things in and unwanted things out
- For use in many soil types
- Ideally suited for fence building and tree planting around any type of property

Features:

- Auger are available in sizes from 6 to 20 inches(152 to 762mm) to suit many post sizes and soil types;
- Designed for strength and durability with re-enforced boom
- High strength, re-enforced arm

Parameter

MODEL HD06 HD09 HD12 HD14 HD18 HD20
Drill diameter 6” (152mm) 9” (228mm) 12” (304mm) 14” (355mm) 18” (457mm) 20” (508mm)
Length of auger (mm) 673 mm 914 mm 559 mm 762 mm 762 mm 762 mm
P.T.O speed (rpm) 540 540 540 540 540 540
Gearbox rate 3:1 3:1 3:1 3:1 3:1 3:1
Construction mass (kg) 92 110 112 127 136 140
Power required 20-35HP 20-40HP 20-40HP 30-45HP 35-70HP 35-70HP
Matched model 20-40HP Series, 45-50HP Series, 55-65HP Series, EC Series, G2 Series, G3 Series
