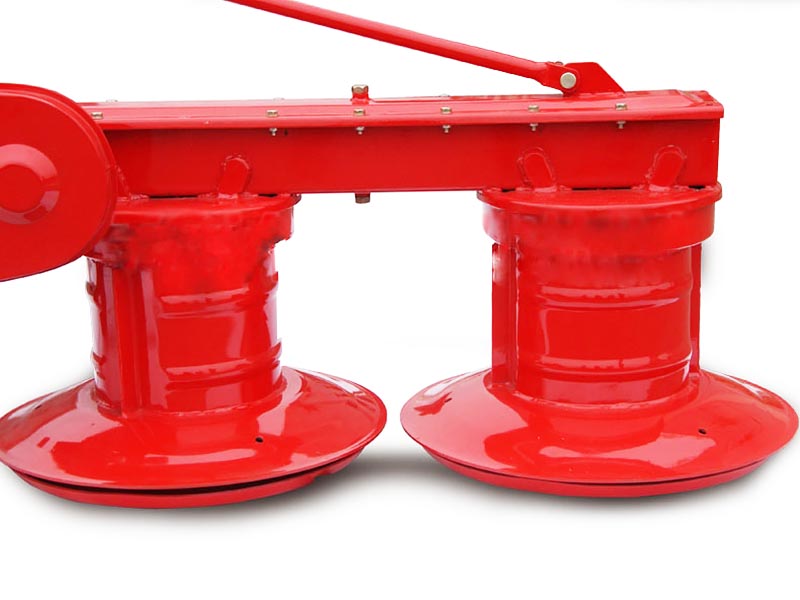

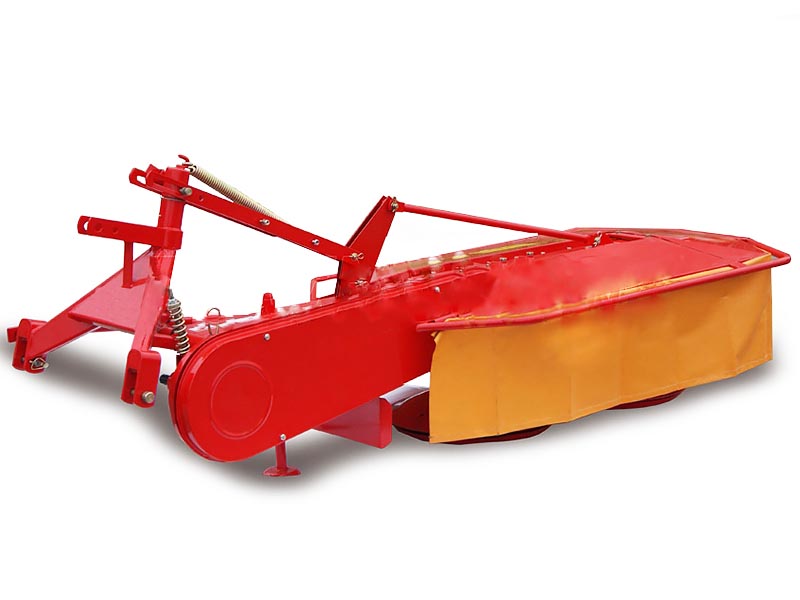

Drum Mower

Drum mowers especially designed for mowing small areas (e.g. gardens). Simple economical design, low and steady cutting height makes grass grow back faster. Durable and reliable. One of its main advantages is low power demand.

We're here to help: Easy ways to get the answers you need.

Send Email Chat Now

Describe ParameterRelated products Inquiry

Describe

Drum Mower Model DM 135

Drum mowers especially designed for mowing small areas (e.g. gardens). Simple economical design, low and steady cutting height makes grass grow back faster. Durable and reliable. One of its main advantages is low power demand. Easy maintenance. The knives are reversible and can be quickly changed using the tool provided.

Parameter

MODELS DM 135
Overall length 765mm at work 2630mm on road
Overall width 2730mm at work 935mm on road
Overall height 1090mm
Working width 1350mm
Working speed 10km / Hour
Working capacity 13.50acres
V-Belt sizes 17x2650mm
Number of cutting discs 2
Number of cutting blades 6
Length of cutting blade 105mm
Width of cutting blade 46mm
Thickness of cutting blade 3mm
Connection hole diameter Ø21
Number of bevel gear pairs 3
Weight 310kg
Weight with protective canvas System 340kg
PTO speed PTO 540
Power required 25-40HP
Matched model 20-40HP Series EC Series G2 Series
