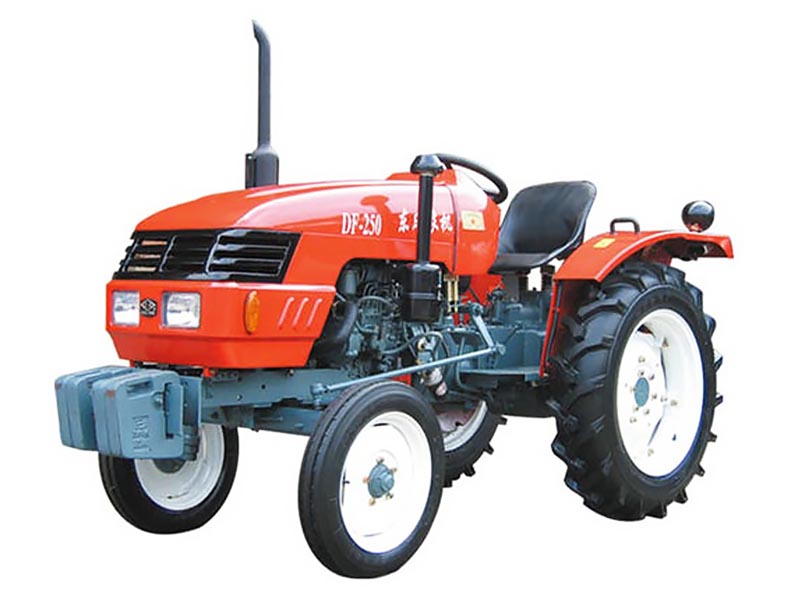

25HP 4wd Mini Tractor

This 25HP 4wd mini tractor is equipped with hydraulic steering and service brake system, which can make the operation more flexible and comfortable. At the same time, it is also equipped with a variety of different operation aids and tools, which can provide users with a full range of services and supports.

We're here to help: Easy ways to get the answers you need.

Send Email Chat Now

Describe

MODEL DF-250/DF-254

Main Dispositions:

Dual-function clutch
Twin turning speeds of P.T.O.
Power steering
Safe start switch
Fiberglass hood
Combination meters
Quality seat system
Seat belt

Options:

Folding ROPS
Sun shade
Spring seat system
Turf tyre
Industrial tyre
EPA Engine
Hydraulic outlet

Parameter

Tractor Parameters	Model		DF-250	DF-254
	Drive Type		2WD	4WD
	Overall Dimensions		2800×1350×1460	2800×1350×1460
	L×W×H(mm)		Height steering wheel	Height steering wheel
	Wheel Track(mm)	Front	975(Usually use)	984
		Front	117,512,751,375	984
		Rear	1,020,112,012,201,320	1,020,112,012,201,320
	Wheel Base(mm)		1619	1638
	Ground	Under Front Axle	400	292
	Clearancre(mm)	Under Rear Axle	290	290
	Rated Traction	In Paddy Fields	3600	4435
	Force(N)	In Dry Fields	5250	6410
	Construction Mass(Kg)		1040	1190
	Min. Turning Radius(m)		2.4	2.4
	Theoretical	Forward	1.11,1.29,2.90,5.06,5.75,9.26,15.02,26.20	1.11,1.29,2.90,5.06,5.75,9.26,15.02,26.20
	Speed(Km/h)	Reverse	1.44,7.45	1.44,7.45
Engine Specifications	Model		Y385T	Y385T
	Type		3-cylinder,Upright inline cylinder,radiator cooling,4-storke cycle	3-cylinder,Upright inline cylinder,radiator cooling,4-storke cycle
	12-hour Rated Power(Kw/hp)		18.4/25.0	18.4/25.0
	Rated Speed(rpm)		2350	2350
	Bore×Stroke(mm)		85×90	85×90
	Total Displacement(L)		1.532	1.532
Drive System	Clutch		Dual-stage	Dual-stage
	Gear Box		(4+1)×2	(4+1)×2
	Main Drive		One Pair of Spiral Bevel gears	One Pair of Spiral Bevel gears
	Differential		Bevel Gear	Bevel Gear
	Differential Lock		Jaw Lock	Jaw Lock
	Final Transmissions		Spur Gear,External Gearing	Spur Gear,External Gearing
Travelling Mechanism	Tyre	front	4.00-16(herringbone pattern)	6.00-12(herringbone pattern)
	Tyre	rear	8.3-24(herringbone pattern)	8.3-24(herringbone pattern)
	Steering Gear		Full Hydraulic steering	Full Hydraulic steering
	Brake		Disk type	Disk type
Working Device	Hydraulic System	Lifting Capacity at 610 mm Behind Lift Point(Kg)	432kg	432kg
	Hydraulic System	3-point Suspension	Category:I	Category:I
	P.T.O.Shaft	Rotating Speed(rpm)	540/1000	540/1000
	P.T.O.Shaft	Spline size	6-φ35 Rectangular spline	6-φ35 Rectangular spline
