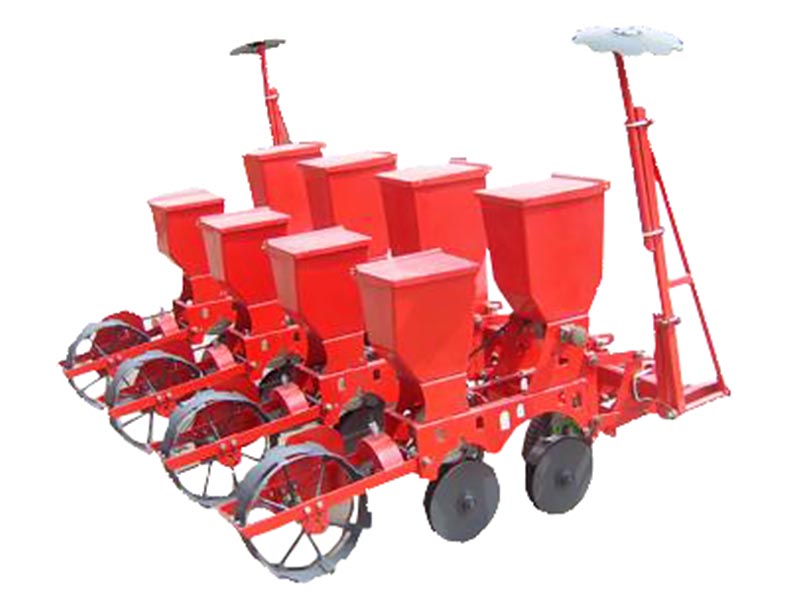

2BFY-4C Series Precision Planter

2BFY-4C serise precision planter is a kind of tractor-mounted with 29-88Kw (40-120hp) roller tractor, multifunction farming implement.

We're here to help: Easy ways to get the answers you need.

Send Email Chat Now

Describe ParameterRelated products Inquiry

Describe

2BFY-4C Series Precision Planter

2BFY-4C serise precision planter is a kind of tractor-mounted with 29-88Kw (40-120hp) roller tractor, multifunction farming implement. The main characters as below:

1. Adopt picker finger seed drill metering precision, sowing fast and accurate. Especially the different size of seeds.
2. It is can be Sowing corn or soybean by replacing the seeding plate.
3. Adopt unit contouring, perform the same drilling depth and fit for different condition of soil.
4. “V” Type ground wheel with big weight, make good performance to the pressing.
5. It is convenience to change the sprockets by adopting double pitch chain, working reliable, tight and elastic tension.
6. Enhance the strength of disc opener and improve the hermetically sealed structure. working reliable and longer lifetime.

Parameter

Iterm unit 2BFY-3C 2BFY-4C 2BFY-5C 2BFY-6C
Overall Dimensions Lenght mm 1900 1900 1900 1900
Width 2600 3500 4400 5300
Hight 1400 1400 1400 1400
Weight Kg 540 690 830 980
Row Space mm 400-900
Seed Sowing Device   picker finger seed drill(corn)Scoop Planter(soybean)
Fertilizer Device   Fluted wheel
Inter-plant Distance mm 76-189(corn)18-44(soybean)
Working Speed Km/h 5-9
Drilling Depth mm 30-60
Fertilizering Depth mm 50-80
Volume of Seed Hopper L 35×3 35×4 35×5 35×6
Volume of Fertilizer Hopper L 50×3 50×4 50×5 50×6
Driving Force Kw 29-73 36-73 53-73 53-88
Working Efficience Ha/h 0.6-2.4 0.8-3.2 1-4 1.2-4.8
