  • DF-12L Series walking tractor

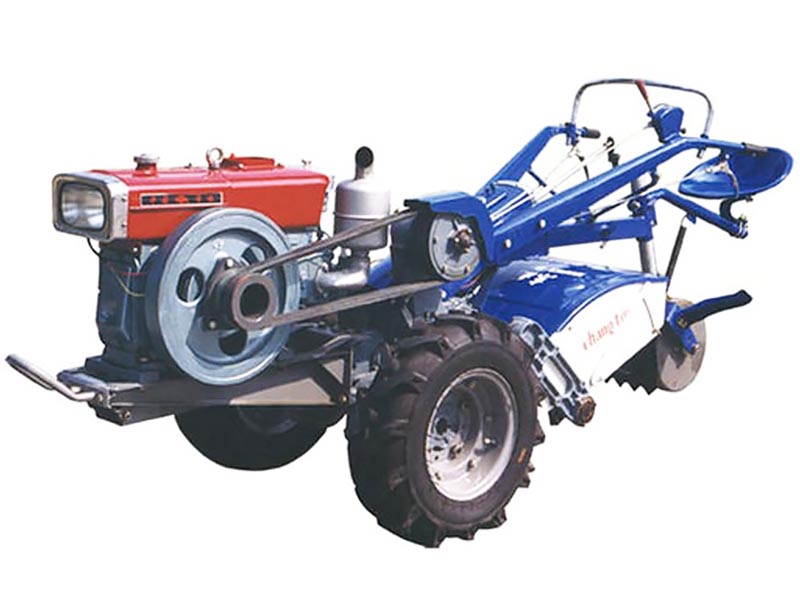

DF-12L Series Walking Tractor

Anti-skid stlle wheel Model 100-640,Anti-skid stlle wheel Model 100-640N,Double-furrow plough Model 1LS-220

We're here to help: Easy ways to get the answers you need.

Send Email Chat Now

Describe ParameterRelated products Inquiry

Describe

Main farm implements(optional):

Anti-skid stlle wheel Model 100-640
Anti-skid stlle wheel Model 100-640N
Double-furrow plough Model 1LS-220
Disk Plough Model 1LS-220Y
Power driven disk plough Model 1LYQ-320
Sprinkler Model 8Y-80
Swather/reaper Model 4GL-120
Cultivator drill Model 2BG-6A
Trailer 7C-1(Standard)
Swather/reaper Model 4GL-120
Trailer 7C-1BH(Hydraulic dumping)

Parameter

MAIN TECHNICAL SPECIFICATINS
Model of Power Tiller Unit DF-12EL DF-12KL DF-12L DF-12SL
Structure without rotavator Kg 374 368 350 353
weight with rotavator 479 473 455 458
Working Weight (with rotavator) kg 514 508 490 493
Turning speed of rototilling shaft rpm 188/300 188 188 188/300
Overall dimensions (L×W×H) mm 3180×960×1250 2680×1030×1250 2680×960×1250 2680×960×1250
Number of blades PCS 18 24 18 18
Rototilling width mm 600 800 600 600
Type of tractor   Single axle,dual-purpose for both tractor &drive Single axle,dual-purpose for both tractor &drive Single axle,dual-purpose for both tractor &drive Single axle,dual-purpose for both tractor &drive
Traveling Forword km/h 1.4, 2.5, 4.1, 5.3, 9.4, 15.3 1.4, 2.5, 4.1, 5.3, 9.4, 15.3 1.4, 2.5, 4.1, 5.3, 9.4, 15.3 1.4, 2.5, 4.1, 5.3, 9.4, 15.3
speed Reverse 1.1, 3.8 1.1, 3.8 1.1, 3.8 1.1, 3.8
Tyre Size   6.00-12 6.00-12 6.00-12 6.00-12
Wheel track mm 800,740,640,580(normally use 800) 800,740,640,580(normally use 800) 800,740,640,580(normally use 800) 800,740,640,580(normally use 800)
Min.ground clearance mm 185 185 185 185
Min.turning radius m 0.9(with no rotavator) 0.9(with no rotavator) 0.9(with no rotavator) 0.9(with no rotavator)
Model ofengine   S195N S195N S195N S195N
Type of engine   Horizontal 4-stroke Horizontal 4-stroke Horizontal 4-stroke Horizontal 4-stroke
Bore×stroke mm 95×115 95×115 95×115 95×115
Total displacement L 0.815 0.815 0.815 0.815
Compression ratio   20:01 20:01 20:01 20:01
Turing speed of crankshaft rpm 2000 2000 2000 2000
1-hour rated output kW/hp 9.30/12.65 9.30/12.65 9.30/12.65 9.30/12.65
12-hour rated output kW/hp 8.30/11.29 8.30/11.29 8.30/11.29 8.30/11.29
Specific fuel consumption g/kW.h 250 250 250 250
Specific lube oil consumption g/kW.h ≤2.00 ≤2.00 ≤2.00 ≤2.00
Cooling mode   Condenser(Radiator) Condenser(Radiator) Condenser(Radiator) Condenser(Radiator)
