  • 1LY(SX) Series Disc plough

1LY(SX) Series Disc Plough

Two-way disc plough products are mainly used for tillage on dry cultivated or fallow land. They not only have the function of ordinary disc plough but also have the characteristics of short idle distance of travel on the edge of fields, high productivity,

We're here to help: Easy ways to get the answers you need.

Send Email Chat Now

Describe ParameterRelated products Inquiry

Describe

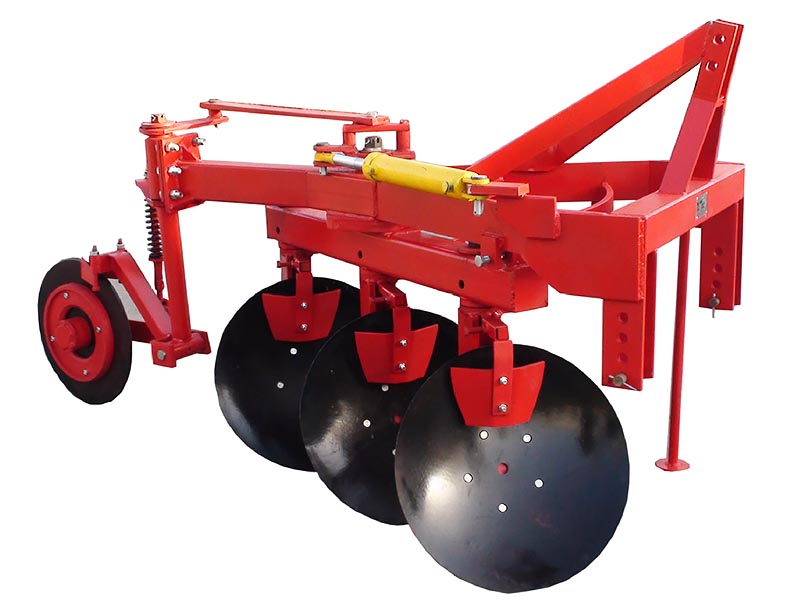

Two-way disc plough

Two-way disc plough products are mainly used for tillage on dry cultivated or fallow land. They not only have the function of ordinary disc plough but also have the characteristics of short idle distance of travel on the edge of fields, high productivity, low oil consumption etc. They are also suitable for working on terraced fields and small piece of farming land.

Parameter

MODEL 1LY(SX)-325 1LY(SX)-425 1LY(SX)-525 1LY(SX)-625
Working width (mm) 750 1000 1250 1500
Working depth (mm) 250-300
Number of Disc (pc) 3 4 5 6
Dia. Of Disc (mm) 660
Net weight (kg) 700 800 900 1000
Matched power 60-65HP 75-80HP 100HP 100-120HP
Matched model 55-65HP Series 70-80HP Series 90-100HP Series
