| Tractor Parameters |
Model |
DF-550 |

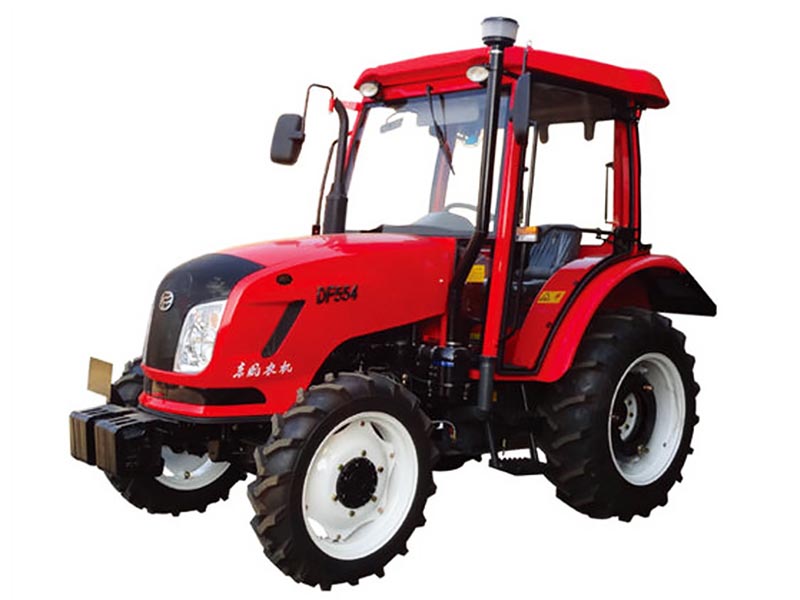

DF-554 |
| Drive Type |
2WD |
4WD |
| Overall Dimensions L×W×H(mm) |
3890×1828×2400 (Height to steering wheel) |
3890×1828×2400 (Height to steering wheel) |
| Wheel Track(mm) |
Front |
142,015,201,620 |
1420 |
| Rear |
1450-1650(1300) |
1450-1650(1450) |
| Wheel Base(mm) |
2060 |
2080 |
| Ground Clearancre (mm) |
Under Front Axle |
450 |
325 |
| Under Rear Axle |
|
|
| Rated Traction Force(N) |
11000 |
14000 |
| Construction Mass(Kg) |
2220 |
2370 |
| Min. Turning Radius(m) |
4 |
4.1 |
| Theoretical Speed(no creeper) |
Forward(km/h) |
1.57,2.60,3.32,5.26,4.12,6.80,8.73 13.80,10.80,17.80,22.90,36.30 |
1.57,2.60,3.32,5.26,4.12,6.80,8.73 13.80,10.80,17.80,22.90,36.30 |
| |
| Reverse(km/h) |
4.20,6.50,8.90,14.40 |
4.20,6.50,8.90,14.40 |
| Theoretical Speed(with creeper) |
Forward(km/h) |
0.29,0.47,0.61,0.97,0.76,1.25 |
0.29,0.47,0.61,0.97,0.76,1.25 |
| |
1.60,2.00,2.50,3.30,4.20,6.90 |
1.60,2.00,2.50,3.30,4.20,6.90 |
| Reverse(km/h) |
0.77,1.27,1.63,2.58 |
0.77,1.27,1.63,2.58 |
| Engine Specifications |
Model |
GZ4102T/ YTR4105T/ LR4108T |
CZ4102T, YTR4105T, LR4108T |
| Type |
4-cylinder,Upright inline cylinder radiator cooling,4-storke cycle,direct-injetion |
4-cylinder,Upright inline cylinderradiator cooling,4-storke cycle,direct-injetion |
| Rated Power(Kw/hp) |
40.5/55.0 |
40.5/55.0 |
| Rated Fuel Consumption(g/kw/h) |
≤242 |
≤242 |
| Rated Speed(rpm) |
2300 |
2300 |
| Bore×Stroke(mm) |
102×125, 105×125, 108×130 |
105×125 |
| Total Displacement(L) |
4.08/ 4.33/ 4.76 |
4.33 |
| Drive System |
Clutch |
Dry Linkage type dual shift Function clutch |
Dry Linkage type dual shift Function clutch |
| Gear Box |
4×(3+1),sleeve gear |
4×(3+1),sleeve gear |
| Main Drive |
One Pair of Spiral Bevel gears |
One Pair of Spiral Bevel gears |
| Differential |
Bevel Gear |
Bevel Gear |
| Differential Lock |
sliding pin,foot operated |
sliding pin,foot operated |
| Final Transmissions |
planetary reduction gear |
planetary reduction gear |
| Travelling Mechanism |
Tyre |
6.00-16 |
7.5-20 |
| |
13.6-28 |
13.6-28 |
| Steering Gear |
Hydraulic streering |
Hydraulic streering |
| Brake |
Wet disc(Multiple) |
Wet disc(Multiple) |
| Working Device |
Hydraulic System |
1200 |
1200 |
| Category:II |
Category:II |
| P.T.O.Shaft |
540/1000 |
540/1000 |
| 6-φ35 Rectangular spline |
6-φ35 Rectangular spline |
