  • 50Hp Wheel Tractor

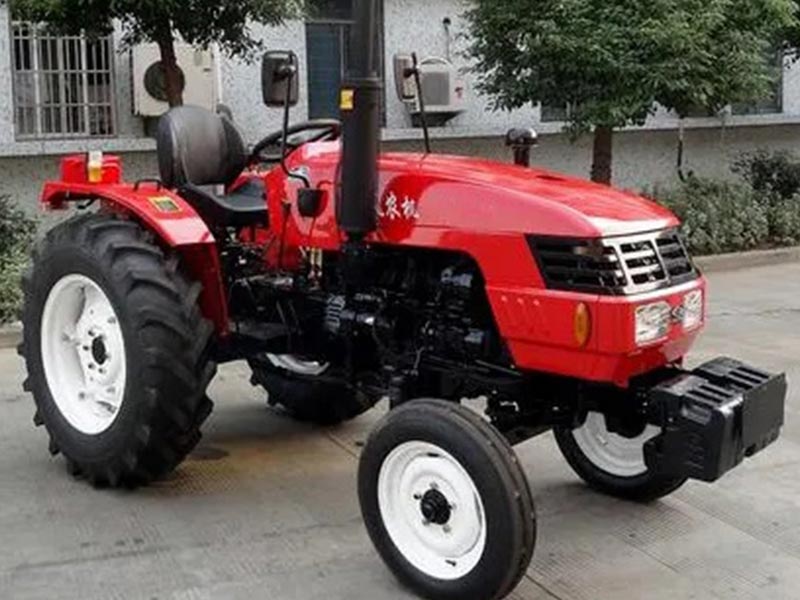

50Hp Wheel Tractor

Single-function clutch,Twin turning speeds of P.T.O.,Power steering

We're here to help: Easy ways to get the answers you need.

Send Email Chat Now

Describe ParameterRelated products Inquiry

Describe


Main Dispositions:

Single-function clutch
Twin turning speeds of P.T.O.
Power steering
Saft start switch
Metal sheet hood
Combined meters
Quality seat system
Seat belt

Options:

Folding ROPS

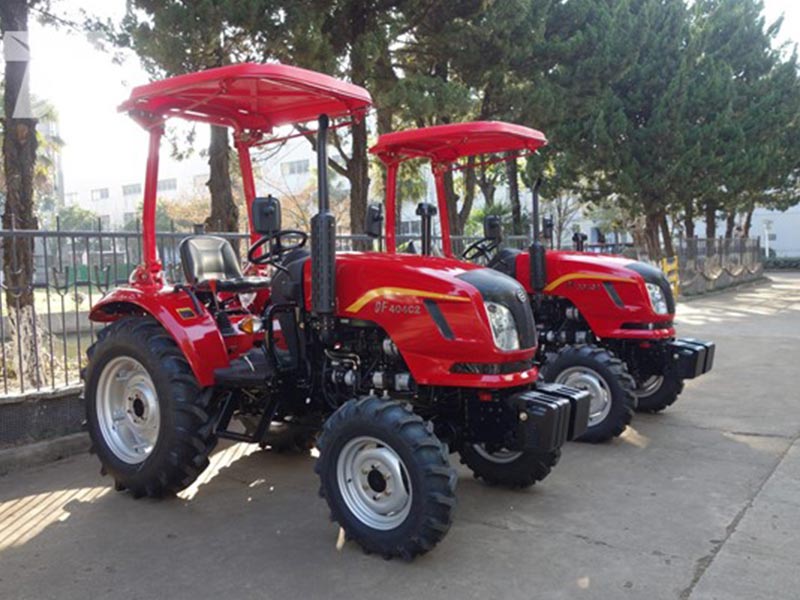

Sun shade
Creeper gear
Synchromesh

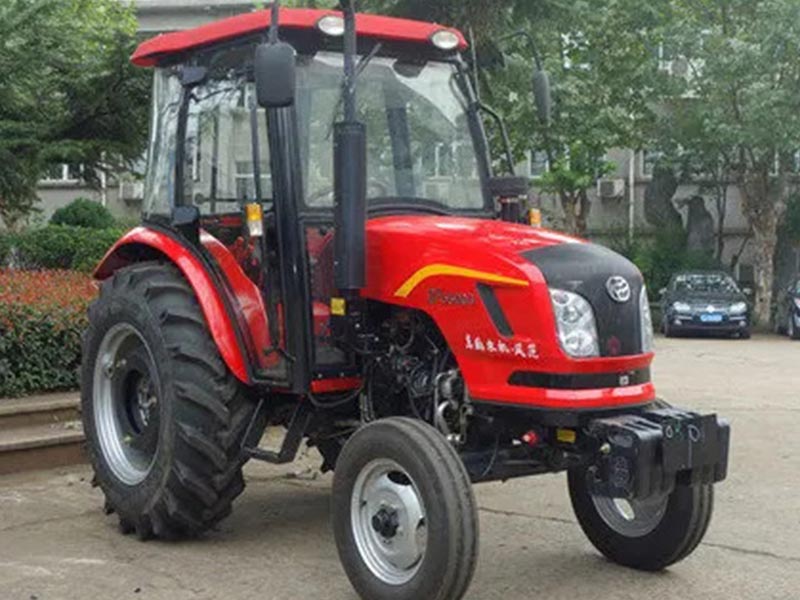

Cab
Hydraulic outlet
Air brake system

Parameter

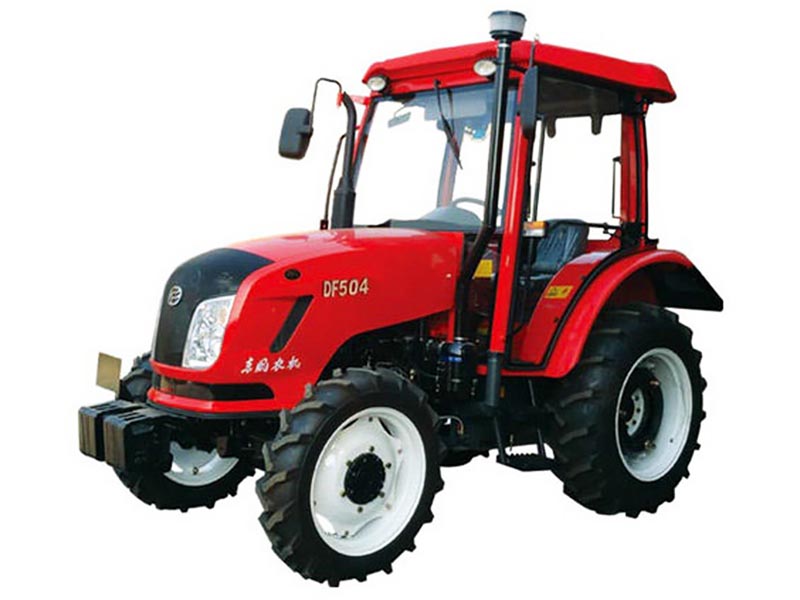

Tractor Parameters Model DF-500 DF-504
Drive Type 2WD 4WD
Overall Dimensions L×W×H(mm) 3725×1615×2170(Height to steering wheel) 3725×1615×2170
Wheel Track(mm) Front 1200-1500 1300
Rear 1200-1620(1300) 1200-1620(1300)
Wheel Base(mm) 1855 1908
Ground Under Front Axle 432 367
Clearancre(mm) Under Rear Axle 469 469
Rated Traction Force(N) 10500 12500
Construction Mass(Kg) 1720 1920
Min. Turning Radius(m) 3.75 4
Theoretical Speed(no creeper) Forward(km/h) 1.58,2.60,3.34,5.29,4.1,6.1,8.78 13.90,10.87,17.92,23.04,36.18 1.58,2.60,3.34,5.29,4214,6.83,8.78 13.90,10.87,17.92,23.04,36.18
Reverse(km/h) 4.21,6.5,8.92,14.12 4.21,6.5,8.92,14.12
Theoretical Speed(with creeper) Forward(km/h) N/W N/W
Reverse(km/h) N/W N/W
Engine Specifications Model 4L68,JD4100 4L68/JD4100
Type 4-cylinder,Upright inline cylinder radiator cooling,4-storke cycle,direct-injetion 4-cylinder,Upright inline cylinder radiator cooling,4-storke cycle,direct-injetion
Rated Power(Kw/hp) 36.8/50.0 36.8/50.0
Rated Fuel Consumption(g/kw/h) ≤242 ≤242
Rated Speed(rpm) 2400 2400
Bore×Stroke(mm) 95×100,100×105 95×100,100×105
Total Displacement(L) 2.86/3.3 2.86/3.3
Drive System Clutch Single-function,dry constant meshing Single-function,dry constant meshing
Gear Box 4×(3+1),sleeve gear shift 4×(3+1),sleeve gear shift
Main Drive One Pair of Spiral Bevel gears One Pair of Spiral Bevel gears
Differential Bevel Gear Bevel Gear
Differential Lock sliding pin,foot operated sliding pin,foot operated
Final Transmissions planetary reduction gear planetary reduction gear
Travelling Mechanism Tyre front 5.50-16,6.00-16 7.5-16,8.3-20
rear 12.4-28 12.4-28
Steering Gear Hydraulic streering Hydraulic streering
Brake Wet disc(Multiple) Wet disc(Multiple)
Working Device Hydraulic System Lifting Capacity at 610 mm Behind Lift Point(Kg) 900 900
3-point Suspension Category:II Category:II
P.T.O.Shaft Rotating 540/1000 540/1000
Speed(rpm)
Spline size 6-φ35 Rectangular spline 6-φ35 Rectangular spline
