  • 40HP Wheel Tractor

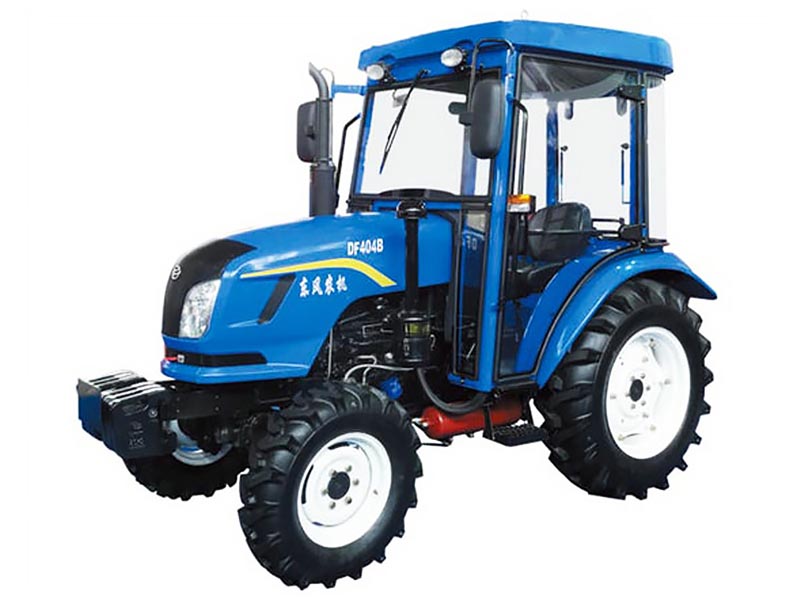

40HP Wheel Tractor

Dual-function clutch,Twin turning speeds of P.T.O.,Power steering

We're here to help: Easy ways to get the answers you need.

Send Email Chat Now

Describe ParameterRelated products Inquiry

Describe


Main Dispositions:

Dual-function clutch
Twin turning speeds of P.T.O.
Power steering
Saft start switch
Fiberglass hood
Combination meters
Quality seat system
Seat belt

Options:

Folding ROPS
Sun shade
Spring seat system
Turf tyre
Industrial tyre
EPA Engine
Hydraulic outlet

Parameter

Model DF-400 DF-404
Drive Type 2WD 4WD
Overall Dimensions 3354×1500×1620(Height to steering wheel) 3354×1500×1620(Height to steering wheel)
L×W×H(mm)
Wheel Track(mm) Front 1100(Usually use),1200,1300,1400 1200
  Rear 1100(Usually use),1200,1300,1400 1100(Usually use),1200,1300,1400
Wheel Base(mm) 1818 1818
Ground Under Front Axle 424 378
Clearancre(mm) Under Rear Axle 405 405
Rated Traction Force(N) In Paddy Fields 4970 5760
  7160 7960
In Dry Fields 1390 1485
Construction Mass(Kg) 3.2 3.2
Min. Turning Radius(m) 1.75,2.88,4.63,6.22,9.05,14.90,23.98,32.21 1.75,2.88,4.63,6.22,9.05,14.90,23.98,32.21
Theoretical Speed(Km/h) Forward 2.30,11.92 2.30,11.92
Reverse ZN490T ZN490T
Model 4-cylinder,Upright inline cylinder 4-cylinder,Upright inline cylinder
Type radiator cooling,4-storke cycle,direct-injetion radiator cooling,4-storke cycle,direct-injetion
Rated Power(Kw/hp) 29.4/40.0 29.4/40.0
Rated Fuel Consumption(g/kw/h) ≤255 ≤275
Rated Speed(rpm) 2400 2400
Bore×Stroke(mm) 90×100 90×100
Total Displacement(L) 2.543 2.543
Clutch Linkage type dual-function clutch Linkage type dual-function clutch
Gear Box (4+1)×2,plannar 3-shaft for main transmission epicyclic gearing for auxiliary transmission (4+1)×2,plannar 3-shaft for main transmission epicyclic gearing for auxiliary transmission
Main Drive One Pair of Spiral Bevel gears One Pair of Spiral Bevel gears
Differential Bevel Gear Bevel Gear
Differential Lock Jaw Lock Jaw Lock
Final Transmissions Spur Gear,External Gearing Spur Gear,External Gearing
Tyre front 5.00-15 7.5-16
rear 12.4-24 12.4-24
Steering Gear Hydraulic streering Hydraulic streering
Brake Disk type Disk type
Hydraulic System Lifting Capacity at 665 665
610 mm Behind Lift
Point(Kg)
3-point Suspension Category:I Category:I
P.T.O.Shaft Rotating 540/1000 540/1000
Speed(rpm)
Spline size 6-φ35 Rectangular spline 6-φ35 Rectangular spline
