| Tractor Parameters |
Model |
DF-800/850 |

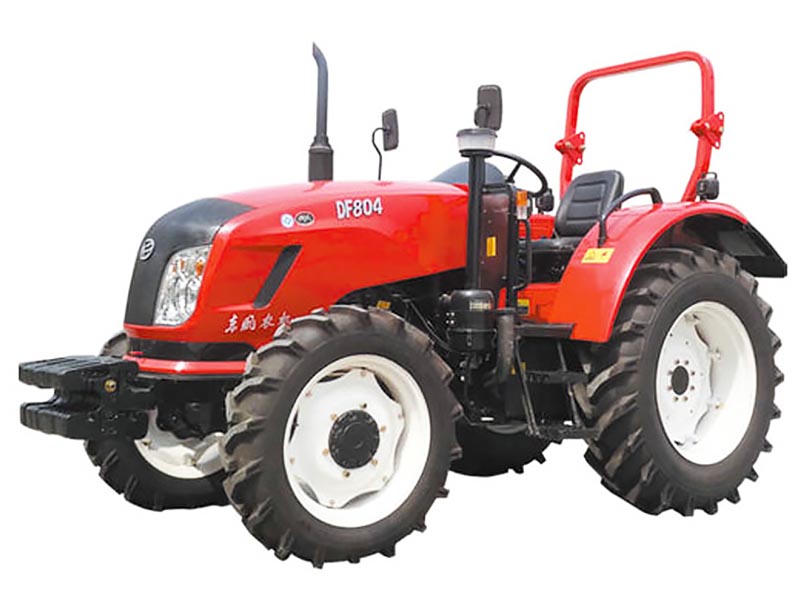

DF-804/854 |
| Drive Type |
2WD |
4WD |
| Overall Dimensions L×W×H(mm) |
4240×2050×2810 |
4240×2050×2810 |
| Wheel Track(mm) |
Front |
1385-1685(1485) |
1610 |
| Rear |
1620-2020(1620) |
1620-2020(1620) |
| Wheel Base(mm) |
2362 |
2362 |
| Ground |
Under Front Axle |
476 |
379 |
| Clearancre(mm) |
Under Rear Axle |
| Rated Traction Force(N) |
15500/16000 |
18600/19200 |
| Construction Mass(Kg) |
3210 |
3575 |
| Min. Turning Radius(m) |
4 |
4.1 |
| Theoretical Speed(no creeper) |
Forward(km/h) |
2.30,3.60,5.80,8.00,10.0,15.6,25.0,34.9 |
2.30,3.60,5.80,8.00,10.0,15.6,25.0,34.9 |
| Reverse(km/h) |
3.10,4.80,7.70,10.80 |
3.10,4.80,7.70,10.80 |
| Engine Specifications |
Model |
LRC4108T/4MC-T |
LRC4108T/4MC-T |
| Type |
4-cylinder,Upright inline cylinder radiator cooling,4-storke cycle,direct-injetion |
4-cylinder,Upright inline cylinder radiator cooling,4-storke cycle,direct-injetion |
| Rated Power(Kw/hp) |
59.0/80.0,62.5/85.0,66/90.0 |
59.0/80.0,62.5/85.0 |
| Rated Fuel Consumption(g/kw/h) |
≤242 |
≤242 |
| Rated Speed(rpm) |
2300 |
2300 |
| Bore×Stroke(mm) |
108×135/110×135 |
108×135/110×135 |
| Total Displacement(L) |
4.94/5.13 |
4.94/5.13 |
| Drive System |
Clutch |
Dry Independent type dual Function clutch |
Dry Independent type dual Function clutch |
| Gear Box |
4×(2+1)×2 |
4×(2+1)×2 |
| Main Drive |
One Pair of Spiral Bevel Gear |
One Pair of Spiral Bevel Gear |
| Differential |
Obturation,four bevel gears |
Obturation,four bevel gears |
| Differential Lock |
Mesh gear |
Mesh gear |
| Final Transmissions |
Planetary reduction gear |
Planetary reduction gear |
| Travelling Mechanism |
Tyre |
front |
6.50-20,7.5-16 |
11.2-24 |
| rear |
14.9-30,13.6-38,16.9-34 |
13.6-38,16.9-34 |
| Steering Gear |
Hydraulic streering |
Hydraulic streering |
| Brake |
Oil immersed muliplate disc |
Oil immersed muliplate disc |
| Working Device |
Hydraulic System |
Lifting Capacity at 610 mm Behind Lift Point(Kg) |
1600 |
1600 |
| 3-point Suspension |
Category:II |
Category:II |
| P.T.O.Shaft |
Rotating Speed(rpm) |
540/1000 |
540/1000 |
| Spline size |
6-φ35 Rectangular spline |
6-φ35 Rectangular spline |
