  • DF-81BL Series Walking Tractor

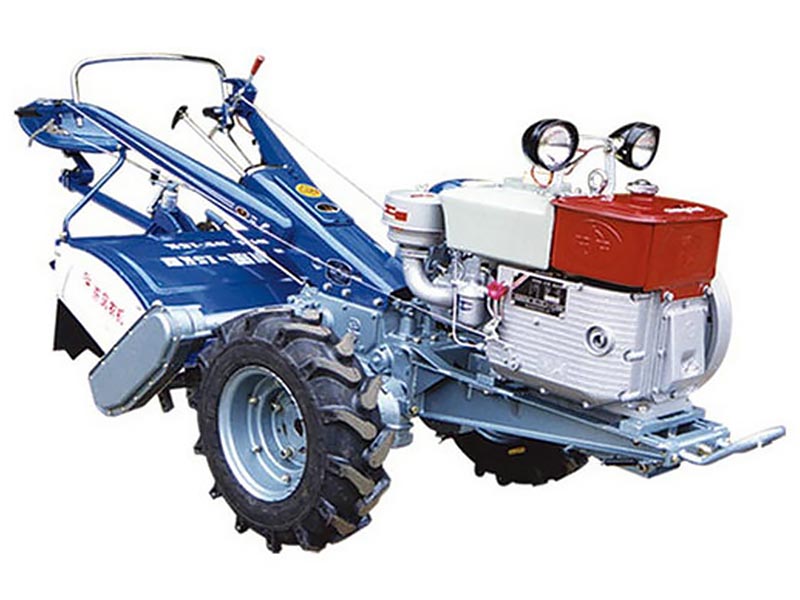

DF-81BL Series Walking Tractor

Anti-skid stlle wheel Model 100-640,Anti-skid stlle wheel Model 100-640N,Double-furrow plough Model 1LS-125

We're here to help: Easy ways to get the answers you need.

Send Email Chat Now

Describe ParameterRelated products Inquiry

Describe

Main farm implements(optional):

Anti-skid stlle wheel Model 100-640
Anti-skid stlle wheel Model 100-640N
Double-furrow plough Model 1LS-125
Swather/reaper Model 4GL-100
Sprinkler Model 40BPZ-18
Sprinkler Model 50BPZ-45
Trailer 7C-1(Standard)

Parameter

MAIN TECHNICAL SPECIFICATINS
Model of Power Tiller Unit DF-81BL
Type of tractor   Single axle,dual-purpose for both tractor &drive
Overall dimensions (L×W×H) mm 2065×870×1180
Wheel track mm 680,730,780(normally use 680)
Min.ground clearance mm 215
Min.turning radius m 0.9(with no rotavator)
Tyre Size   6.00-12
Structure weight kg 264
Working Weight (with rotavator) kg 351
Traveling
speed
Forword km/h 1.25, 2.54, 4.21, 5.12, 10.36, 17.19
Reverse 2.76
Turning speed of rototilling shaft rpm 172/235(210,288 by exchanging sprockets)
Number of blades PCS 18
Rototilling width mm 660
Model ofengine   185N
Type of engine   Horizontal 4-stroke
Bore×stroke mm 85×90
Total displacement L 0.51
Compression ratio   21:01
Turing speed of crankshaft rpm 2200
1-hour rated output kW/hp 6.62/9
12-hour rated output kW/hp 5.88/8
Specific fuel consumption g/kW.h 257
Specific lube oil consumption g/kW.h ≤2.04
Cooling mode   Condenser(Radiator)
