  • Trailer

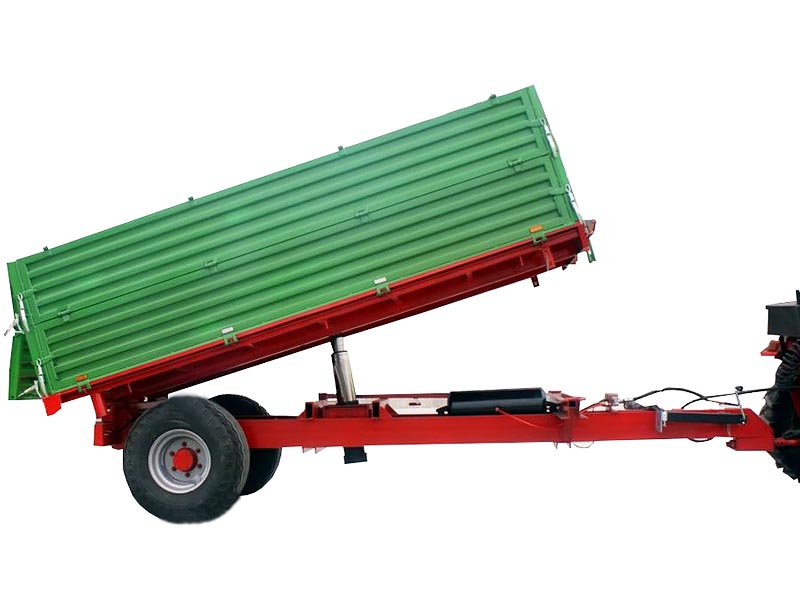

Trailer

With a hydraulic lift for tipping they are perfect for transporting soil, sand, feed, fertilisers, tools, small machinery & trees for planting

We're here to help: Easy ways to get the answers you need.

Send Email Chat Now

Describe ParameterRelated products Inquiry

Describe



Parameter

Model Cargo Dimension (mm) Loading capacity (kg) Curb Weight (kg) Tire/No. Unload Form Brakes Form Matched Tractor Qty of 40'HQ 40 (SET)
BN-0.5T walking tractor trailer 1360*860*330 500 122 4.00-12 2 Wheel No Tipping Pedal mechanical brake 8-12 HP walking tractor 130
BN-1T 1800*900*320 1000 185 6.00-16 2 Wheel No Tipping Pedal mechanical brake 8-12 HP walking tractor 80
BN-1.5T BNX-1.5T 2000*1000*450 1500 335 450 6.50-16 2 Wheel No Tipping Back tipping Inertia brake 12-18 HP 75
BN-2T BNX-2T 2400*1200*450 2000 365 469 7.00-16 2 Wheel No tipping Back tipping Inertia brake 12-25HP 60
BN-2T BNX-2T 2100*1500*460 2000 430 495 7.00-16 2 Wheel No Tipping Back tipping Inertia brake 12-25 HP 60
BN-2.5T BNX-2.5T 2500*1500*450 2500 480 600 7.00-16 2 Wheel No Tipping Back tipping Inertia brake 18-25HP 22
BN-3T BNX-3T 3000*1600*460 3000 550 695 7.50-16 2 wheel No Tipping Back Tipping Inflatable brake 25-40 HP 22
3400*1700*460 3000 820 1040 7.00-16 4 Wheel No Tipping Side tipping Inflatable brake 25-40 HP 18
BN-4T BNX-4T 3800*1700*460 4000 1155 1450 7.50-16 4 wheel No tipping Side tipping Inflatable brake 25-40HP 12
BN-5T BNX-5T 3120*1920*460 5000 820 945 8.25-16 2 Wheel No tipping Back tipping hand brake 25-50 HP 20
4000*2150*550 5000 1450 1750 8.25-16 4 wheel No Tipping Side tipping Inflatable brake 40-60 HP 8
BN-6T BNX-6T 4500*2150*550 6000 1670 2060 9.00-16 4 Wheel No tipping Side tipping Inflatable brake 50-90 HP 8
BN-8T BNX-8T 5500*2150*550 8000 2180 2730 7.50-16 8 Wheel No Tipping Side tipping Inflatable brake 60-100HP 8
BN-10T BNX-10T 6000*2150*550 10000 2400 3000 8.25-16 8 Wheel No Tipping Side Tipping Inflatable brake 80-100HP 6
