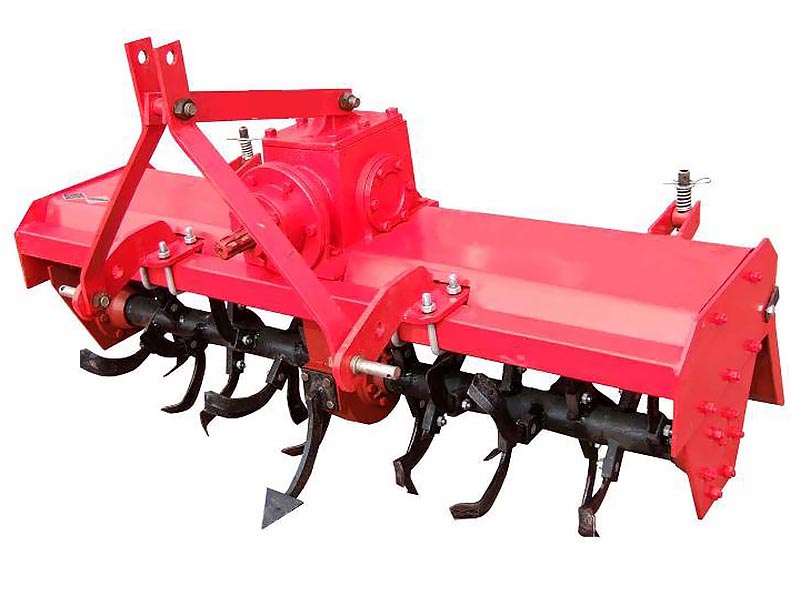

Rotary Tiller

Whether you are laying turf aound a golf course or growing small crops, the rotary hoe is pefect for preparing your top soil for planting

We're here to help: Easy ways to get the answers you need.

Send Email Chat Now

Describe ParameterRelated products Inquiry

Describe

Uses:

- Whether you are laying turf aound a golf course or growing small crops, the rotary hoe is pefect for preparing your top soil for planting
- Creates a smooth finish and is perfect for crop and lawn preparation
- Improving productivity,as well as presentation

Features:

- Adjustable rear flap for safety as well as providing a smooth finish
- Height adjustable skids for depth control
- Extra strong design for long life&reliability

Parameter

MODEL 1GN-90 1GN-100 1GN-125 1GN-135 1GN-150 1GN-180
Working width(mm) 900 1000 1250 1350 1500 1800
Weight(kg) 245 260 285 305 350 425
Number of flanges 5 5 6 6 7 8
Number of blades per flange 6 (Optional 4)
Hitch type Standard three point hitch
Gearbox lubrication SAE 90 oil
Rotor diameter 18"
Rotor shaft speed 209 rpm at 540 rpm PTO
Recommended maximum PTO power(kW) 18.4 18.4-22.1 22.1-29.4 36.8-44.1
POWER REQUIRED 25HP 25-30HP 35-45HP 50-60HP
Matched model 20-40HP Series, 45-50HP Series, 55-65HP Series
