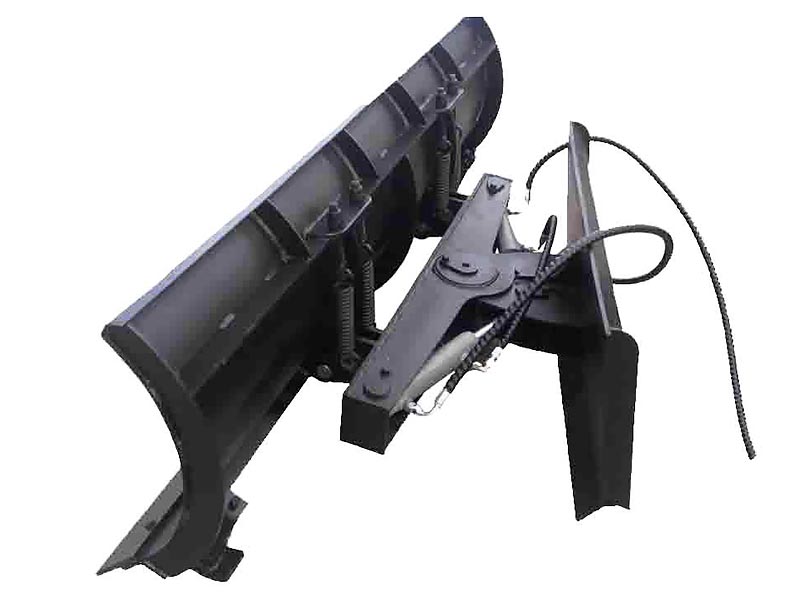

Snow Blade

Not only can match to the tractor’s 3 point linkage, but also to the front of the tractor

We're here to help: Easy ways to get the answers you need.

Send Email Chat Now

Describe ParameterRelated products Inquiry

Describe

Uses:

- Used in removing snow
- Also can be used in clearing away or stocking of loose material

Features:

- Compact structure, flexibility, convenient operation
- Not only can match to the tractor’s 3 point linkage, but also to the front of the tractor
- Steel structure, sturdy
- With rubber for protection

Parameter

MODELS SP140 SP160 SP180 SP200 SP220 SP240 SP250
Dimensions (L*W*H) (mm) 1405*720*640 1605*720*640 1805*720*640 2005*720*640 2205*720*640 2405*720*640 2505*720*640
Working Width (mm) 1400 1600 1800 2000 2200 2400 2500
Structure Weight (kg) 166 172 178 184 190 198 203
Matched power 20-30 HP 25-35HP 30-40 HP 40-50 HP 40-55HP 45-60 HP 45-60 HP
Matched model 20-40 Series, 45-50 Series, 55-65 Series, EC Series, G2 Series
