Describe

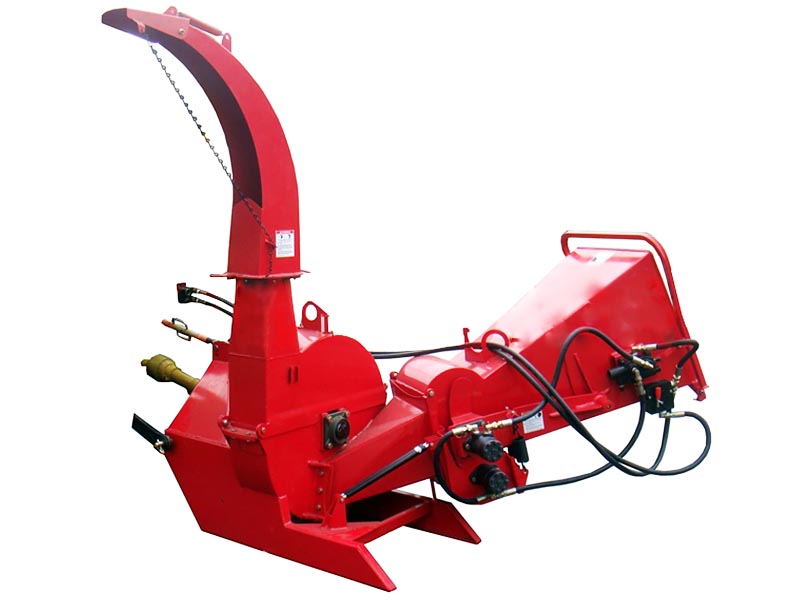

BX Series Wood Chipper


Uses:


- Perfect for those clean-ups after a storm,pruning or just processing general gardening wastes
- Creating mulch for garden plants and trees for conserving water

Features:

- At the heart of the BX Chipper is an oversize heavy duty rotor and reversible chipping blades;
- The self-feed hopper is designed to angle the brush against the rotor and blades, pulling the branches into the chipper;
- Easily control where you want the chips with the double adjustable Exit Chute. The chute swivels 360 degrees and the top deflector adjusts the distance.

Parameter

MODEL BX42S BX62R
Drive System Direct drive, pto w/shearbolt Direct drive, pto w/shearbolt n/a
HP Range 18-50 30-100
Chipper capacity 4" Diameter, (takes up to 10" slab) 6" Diameter, (takes upt ot 12" slab)
Chipper Housing Opening 4" x 10" 6 1/2" x 10"
Rotor Size 25" 30"
Number of Rotor Knives 4 4
Knife Type Hardened Tool Steel Hardened Tool Steel
Rotor Weight 110 lbs 180 lbs
Feeding System Self or Hydraulic Self or Hydraulic
Dimensions(hopper folded) 40" L x 42" x 60" H 50"L x 52" x74" H
Hopper Opening 20" x 20" 25" x 25"
Discharge Hood Rotation 360 360
Discharge Hood Height 60" 74"
Rated RPM 540-1000 540-1000
Weight 425lbs 1070lbs
Power required 20-50HP 30-100
Matched model 20-40HP Series G2 Series EC Series
45-50HP Series
30-40HP Series 45-50HP Series 55-65HP Series 70-80HP Series 90-100HP Series G2 Series EC Series
