Paddy And Wheat Drilling

Specially designed to fit on power tiller which was suitable for rotary tilling & the planting of wheat, corn, bean & peanut.

We're here to help: Easy ways to get the answers you need.

Send Email Chat Now

Describe

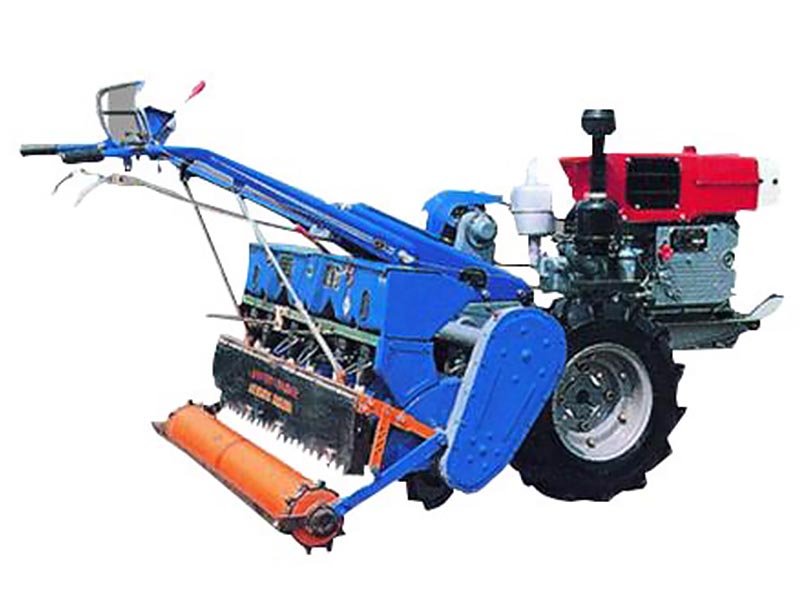

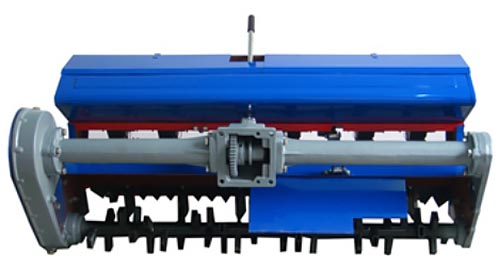

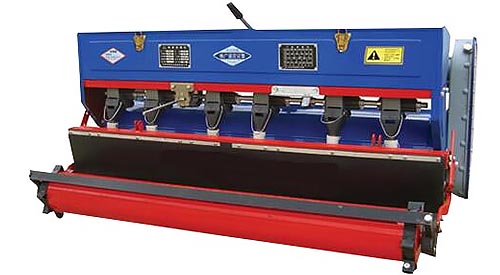

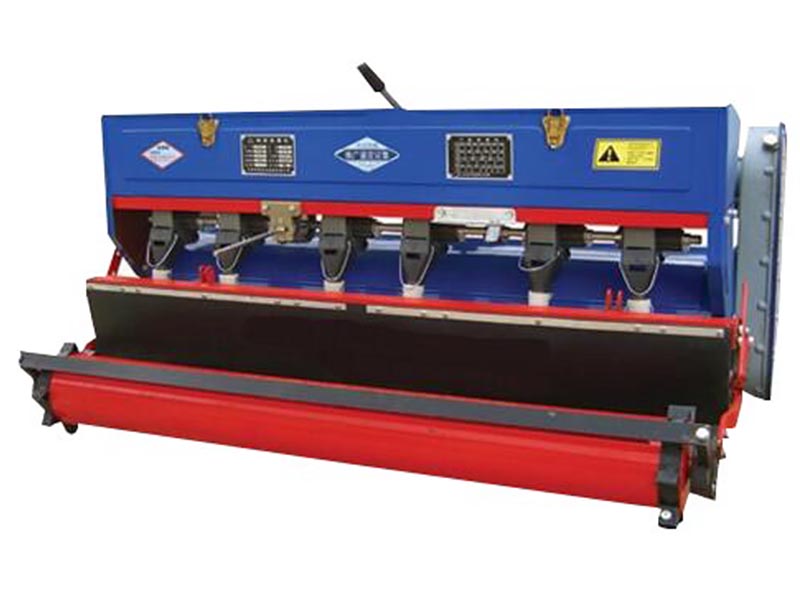

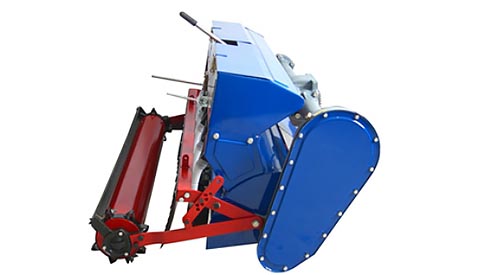

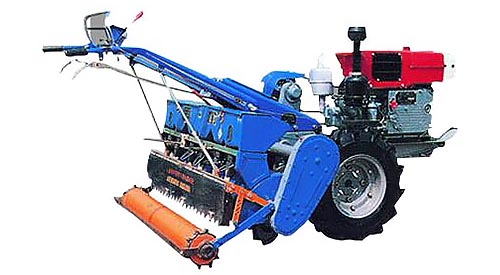

Paddy and Wheat Drilling Machine 2BG-6A

Specially designed to fit on power tiller which was suitable for rotary tilling & the planting of wheat, corn, bean & peanut.

This machinery was designed for multiple works such as rotary tilling, seeding, fertilizing simultaneously.

Parameter

Model	2BG-6A
Over all dimension(mm)	720×1320×700
Complete machines weight(kg)	162
Working mode	Tractor Double amplitude or narrow amplitude fleet rotary tillage drilling
Service speed (km/h)	1.4, 2.5, 4.1
Stepped speed (km	5.3, 9.4
Cutter rotate speed (km/h)	512
Cutter diameter	300
Working scope (mm)	1200
Number of rows	By free in 6 rows
Row spacing (mm)	Isometry 200, 133~267
Single row drilling width (mm)	50-80
Max depth of revolve cut (mm)	60
Sowing depth (mm)	10-50
Seeds box cubage (L)	38
Sowing quantity (kg)	0-30
Work efficiency	3.5-6
Power matched	12-18HP
Matched Model	12HP Series 15HP Series 18HP Series
