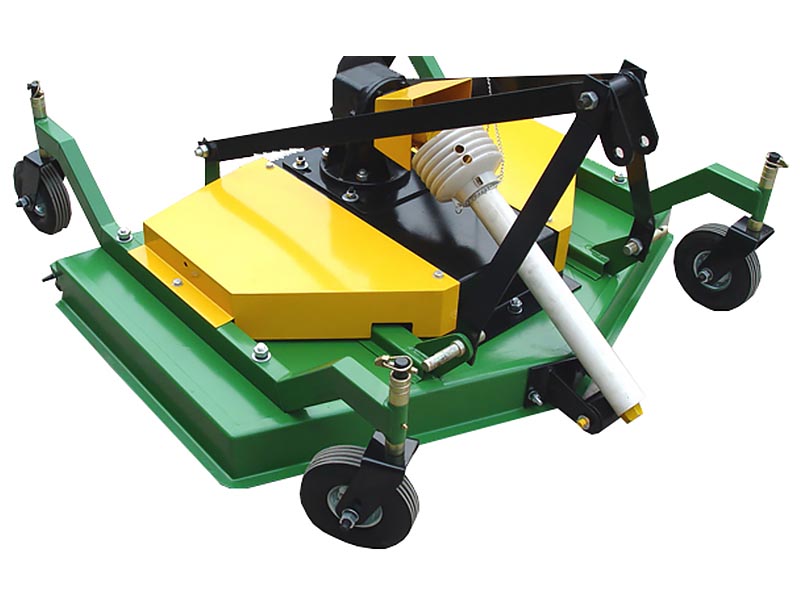

Finishing Mower

Uses:

- Perfect for use when presentation is essential;
- Ideal for work around golf courses, sporting fields, parklands, camping grounds, schools, homesteads and roadsides;
- Rear discharge for normal use or side discharge option for use in areas where the cuttings need to be thrown clear- like under orchards.

Features:

- Rear or side discharge options;
- 4 independent height adjustable castor wheels allow the mower to contour over uneven surfaces to provide an even finish;
- 1-3 high strength cutting blades for a more precision finish;
- floating top hitch to increase surface contouring.

Parameter

MODELS FM-120 FM-150 FM -180
CUTTING WIDTH (INCHES) 120cm(48") 150cm(60") 180cm(72")
DIMENSIONS 1330x860x480mm 1640x995x480mm 1930x1180x480mm
CUTTING HEIGHT (INCHES) 25-100mm (1"-4")
WHEELS SIZES Solid Rubber Tires with ball bearings 210 x 80 mm (8" x 3")
No. OF BLADES 3
BLADE MATERIAL Spring Steel
BLADE SIZES 422x60x6mm 522x60x6mm 623x60x8mm
BLADE SPEED 3375rpm 2700rpm 2250rpm
3-POINT CATEGORY HITCH Ⅰ&Ⅱ Ⅰ&Ⅱ
OPTIMUM P.T.O. 540rpm
P.T.O SPINE 6x6x800mm
MACHINE WEIGHT 195kg 215 kg 265kg
POWER REQUIRED 20-30 HP 25-50 HP 40-70 HP
MATCHED MODEL 20-40HP Series 45-50Hp Series 55-65Hp Series DF-704 EC Series G2 Series
