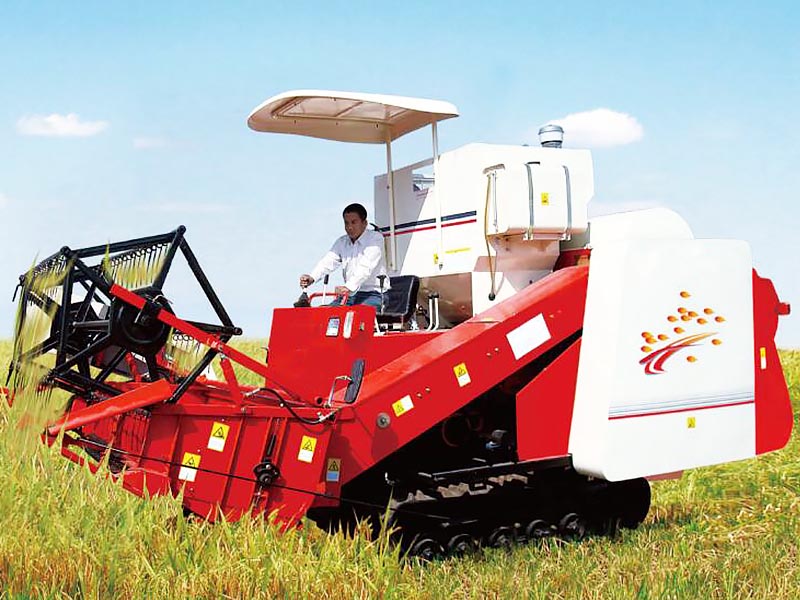

  • DF200

DF200

With strengthened hydraulic steering drive axle.

We're here to help: Easy ways to get the answers you need.

Send Email Chat Now

Describe ParameterRelated products Inquiry

Describe

1. The drive of shear adopts outside cresent cycle.
2. Double layers vibrating screener selecting system.
3. Adopt new type parallelized four wheel drive.
4. With strengthened hydraulic steering drive axle.
5. Adopt 400×90×49mm rubber continuous track.
6. Adopt the technique enabling surplus grain to return into sleeve.
7. Adjustable teeth of sleeve piston and adjustable space of sheller.

Parameter

Engine power (ps) 65/75
Cutting width (mm) 2000
Feeding rate (kg/s) 2
Total loss rate (%) (Wheat)≤1.2 (Rice)≤3.0
Broken rate (%) Wheat≤1.0 Rice≤1.5
Impurity rate (%) Wheat≤2.0 Rice≤2.0
Threshing and cleaning structure type Single horizontal axis flow roller + fan + double layers shaking screen
Gravure plate adjustable structure Increase the adjustment pads and adjust the position of threshing teeth
Axis flow roller(outer diameter*length) ¢550*1325
Grain tank capacity(m³) 0.5/0.8/1.0/1.2
Grain unloading type Mechanic grain unload+Manual receiving grain
Running speed range(Km/h) 1.02~9.50
Operation weight (2700~3250) ±5%
Overall dimension (L*W*H) (mm) ≤5600*2400*2600

Product specifications

Optional 1. Assembled with new diesel motor with four cylinders.
2. Assembled with ordinary 2. 0m shear platform.
3. Assembled with drive axle for superintendents and hydraulic steering equipment.
4. Assembled with a big sized crop tank (1. 2m3) + a manual pick-up channel + a crop discharging hopper.
5. Assembled 400×90×49mm continuous track.
