  • DF200A

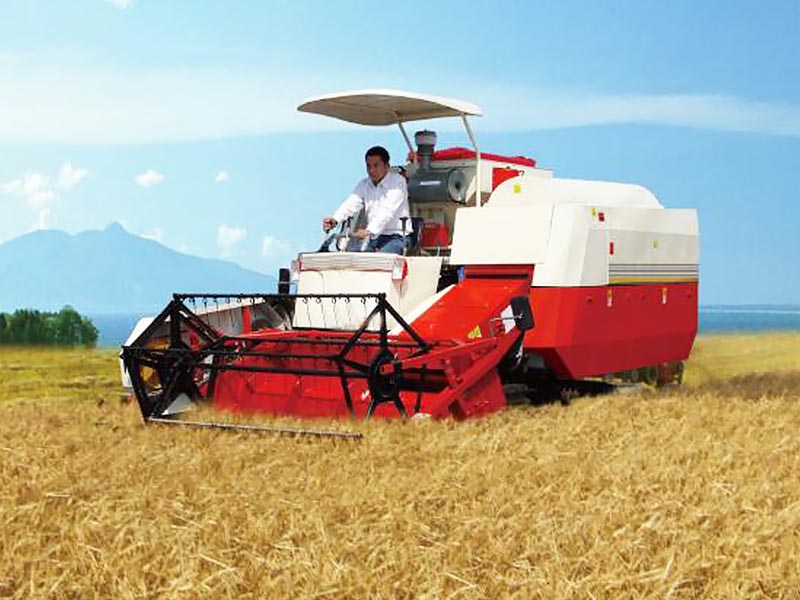

DF200A

The shear platform and the bridge are connected together, which can move up and down as a whole.

We're here to help: Easy ways to get the answers you need.

Send Email Chat Now

Describe ParameterRelated products Inquiry

Describe

1. Adopt HST of American Sauer Co., Ltd., which can realize continuous variable transmission of the complete vehicle.
2. Adopt semi-receiver structure as control mode, which makes the operation of moving forward and backward easy and convenient.
3. Adopt receiver beater + single longitudinal direction axial flow cylinder sheller system.
4. Adopt long 400×90×49mm continuous track.
5. The shear platform and the bridge are connected together, which can move up and down as a whole.
6. Adjustable opening of upper screener and adjustable angle of bottom screener.
7. The rotating speed of fan can be adjusted at definite ratio, which can fit the harvest requirement of various crops.

Parameter

Engine power (ps) 75
Cutting width (mm) 2000
Feeding rate (kg/s) 2
Total loss rate (%) (Wheat)≤1.2 (Rice)≤3.0
Broken rate (%) Wheat≤1.0 Rice≤1.5
Impurity rate (%) Wheat≤2.0 Rice≤2.0
Threshing and cleaning structure type Feeding wheel+single horizontal axis flow roller + fan + double layers shaking screen
Gravure plate adjustable structure Adjust the position of threshing teeth
Axis flow roller(outer diameter*length) ¢620*1854
Grain tank capacity(m³) 0.5/1.0
Grain unloading type Manual receiving grain
Running speed range(Km/h) 0~8.579
Operation weight 2900±5%
Overall dimension (L*W*H) (mm) ≤5115*2290*2800

Product specifications

Optional 1. Assembled with big diesel motor with four cylinders or new diesel motor with four cylinders.
2. Assembled with a small sized crop tank (0. 5m3) + a manual pick-up channel or a big sized crop tank (1. 0m3) + a simply constructed discharging sleeve.
3. The receiver beater + the single longitudinal direction axial flow cylinder sheller system.
4. Adopt HST transmission system of American Sauer Co., Ltd.
