  • 1BJX Series Disc Harrow

1BJX Series Disc Harrow

1BJX Series are used for crushing clods after tillage,preparing soil before seeding, loosening the soil, combining the soil and fertilizer, and cleaning away stubble of plants in light soil field. With reasonable structure, strong ability to rake, durable

We're here to help: Easy ways to get the answers you need.

Send Email Chat Now

Describe ParameterRelated products Inquiry

Describe

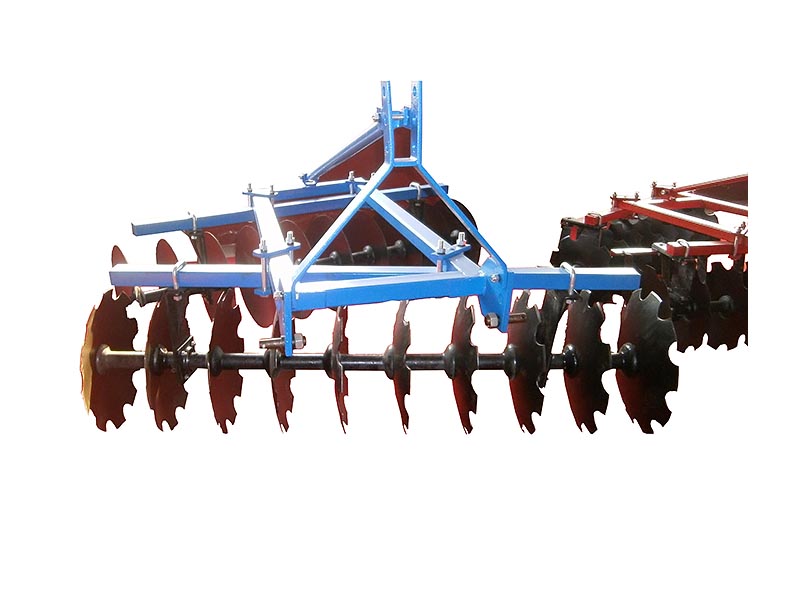

Mounted Medium Disc Harrow

1BJX Series are used for crushing clods after tillage,preparing soil before seeding, loosening the soil, combining the soil and fertilizer, and cleaning away stubble of plants in light soil field. With reasonable structure, strong ability to rake, durable, easy to use and maintain, etc.

Parameter

MODEL 1BJX-1.1 1BJX-1.3 1BJX-1.5 1BJX-1.7 1BJX-2.0 1BJX-2.2 1BJX-2.4 1BJX-2.5 1BJX-2.8
Working width (mm) 1100 1300 1500 1700 2000 2200 2400 2500 2800
Working depth (mm) 140
Number of Disc (pc) 10 12 14 16 18 20 22 24 26
Dia. Of Disc (mm) 560
Net weight (kg) 320 340 360 420 440 463 604 660 700
Matched power 25-30HP 30-40HP 40HP 45HP 50-55HP 55-60HP 65-70HP 75HP 80HP
Matched model 25-40HP Series 45-50HP Series 55-65HP Series 70-80HP Series
