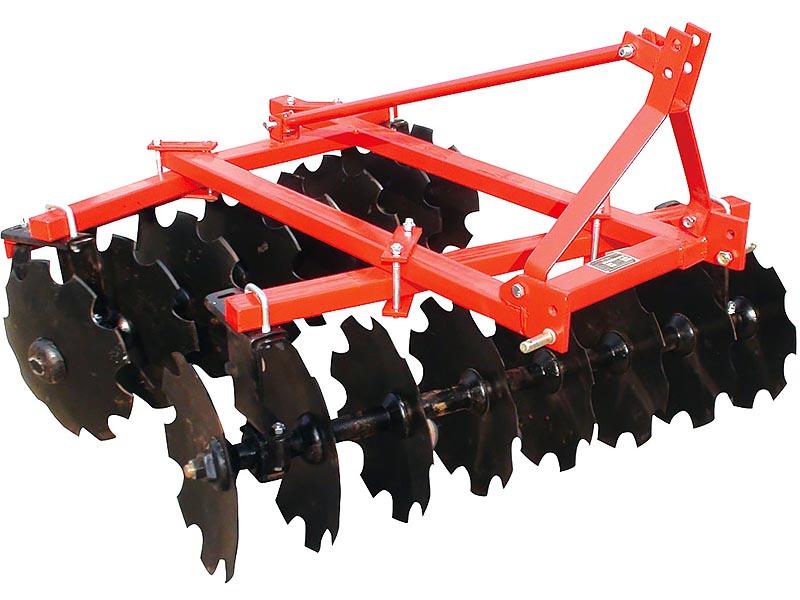

1BZD Series Disc Harrow

1BZD Hydraulic elevating opposed heavy-duty disc harrow are used for breaking up the soil and loosening of wasteland, shrub swamp, heavy soil. It can rake the land instead of plough.

We're here to help: Easy ways to get the answers you need.

Send Email Chat Now

Describe

Hydraulic Elevating Opposed Heavy-Duty Disc Harrow

1BZD Hydraulic elevating opposed heavy-duty disc harrow are used for breaking up the soil and loosening of wasteland, shrub swamp, heavy soil. It can rake the land instead of plough.

Parameter

MODEL	1BZ-2.5	1BZD-2.8	1BZD-3.1	1BZD-3.7	1BZD-4.1	1BZD-4.7
Working width (mm)	2500	2800	3100	3700	4100	4700
Working depth (mm)	180-220
Number of Disc (pc)	22	26	28	32	36	42
Dia. Of Disc (mm)	660
Net weight (kg)	1800	2000	2200	2590	2780	3160
Matched power	80-100HP	100-120HP	100-120HP	100-120HP	100-120HP	120-150HP
Matched model	70-80HP Series 90-100HP Series
