  • 1BQX Series Disc Harrow

1BQX Series Disc Harrow

1BQX Series are used for crushing clods after tillage, preparing soil before seeding, loosening the soil, combining the soil and fertilizer, and cleaning away stubble of plants in light soil field. With reasonable structure, strong ability to rake, durabl

We're here to help: Easy ways to get the answers you need.

Send Email Chat Now

Describe ParameterRelated products Inquiry

Describe

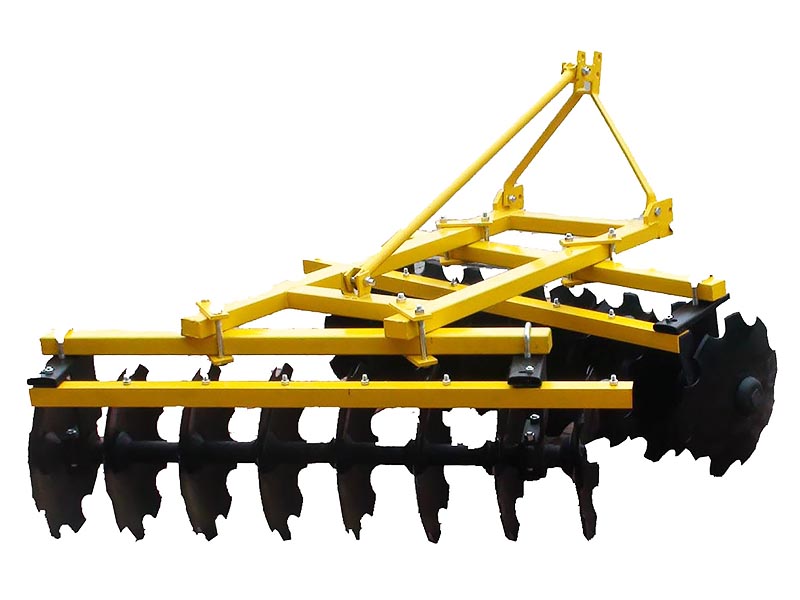

Mounted Light-Duty Disc Harrow

1BQX Series are used for crushing clods after tillage, preparing soil before seeding, loosening the soil, combining the soil and fertilizer, and cleaning away stubble of plants in light soil field. With reasonable structure, strong ability to rake, durable, easy to use and maintain, etc.

Parameter

MODEL 1BQX-1.5 1BQX-1.7 1BQX-2.0 1BQX-2.2 1BQX-2.3 1BQX-3.4 1BQX-5.0
Working width (mm) 1500 1700 2000 2200 2300 3400 5000
Working depth (mm) 100-140
Number of Disc (pc) 16 18 20 22 24 42 60
Dia. Of Disc (mm) 460
Net weight (kg) 250 270 380 400 420 1150 1550
Matched power 20-25HP 25-30HP 35-40HP 40-45HP 55HP 80-100HP 100HP
Matched model 25-40HP Series 45-50HP Series 55-65HP Series 70-80HP Series 90-100HP Series
